Rugged touch panel PC

Rugged touch panel PC

We collaborated with Motium’s Director to update the design of a rugged touch panel personal computer for industrial vehicles. Motium serves large and small customers across multiple markets including marine, aircraft and industrial automation. They needed their panel PC to withstand extreme, rugged environments to an IP65 rating. The PC is installed in heavy duty work vehicles used in harsh conditions. We engineered the new Motium touch panel PC to be extremely tough with high level ingress and drop protection.

Summary

Industry
  • Safety & Industrial
Expertise
  • Industrial Design
  • Mechanical Engineering
Awards
Good Design Award

Project Details

Project Details

The Motium TUFF Panel is a fully functional PC developed for a wide range of fleet vehicles from small forklifts to large open-cut mining trucks and everything in between. We used our extensive engineering experience in ruggedised design to engineer, test and ensure the TUFF Panel PC met all of Motium’s tough requirements.

The built-in industry-standard 75mm VESA bracket provides unrivalled easy-mount integration in a range of cabin locations, in both portrait and landscape orientation for maximum accessibility. The screen’s 1280×1024 output resolution display supports monitor rotation, multi-monitor and split monitor configurations to meet customer needs.

Everything about the device, from the heat-dissipating diecast back casing to the ultra-efficient LED resistive touchscreen display, contributes to extraordinarily low power consumption, for continuous use over a service life of five to seven years, compared to the standard of two.

We designed a hi-vis silicone impact bumper for the PC that doubles as a grip and gasket enabling the fan-less sealed casing to achieve IP65 protection with no maintenance.

The impact resistant 10.4 inch screen has an anti-glare finish with a wide viewing angle.

At only 55mm thick and weighing 2.3kg, the 1020 sets a new standard in an industry where competing products are upwards of 120mm thick and weigh as much as 10kg. The slim-line form of the product, with its thin, floating edges give it a visual lightness while maintaining a ruggedised appearance.

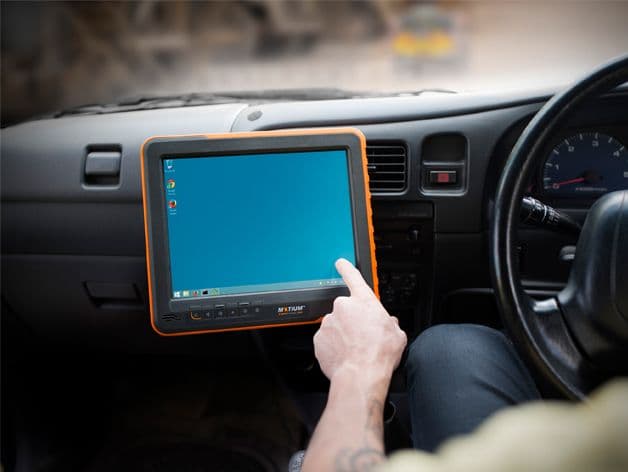

Project image
We purpose designed, engineered and built Motium’s TUFF Panel PC so it gives uninterrupted performance in the harsh realities of working in challenging environments, protected from dust, water ingress, glare, temperature extremes, continuous use and vibration.

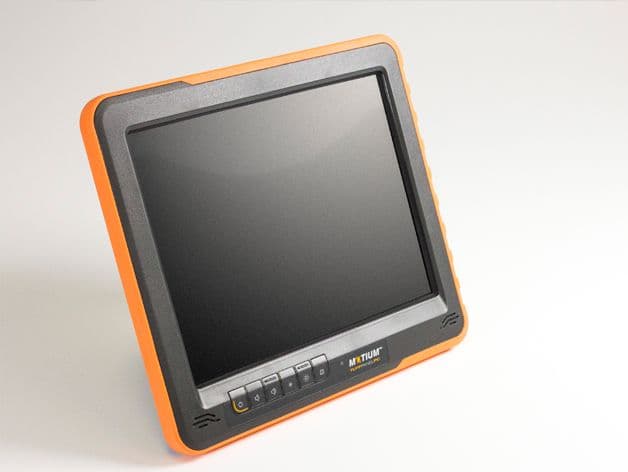

Showing the front left of the screen

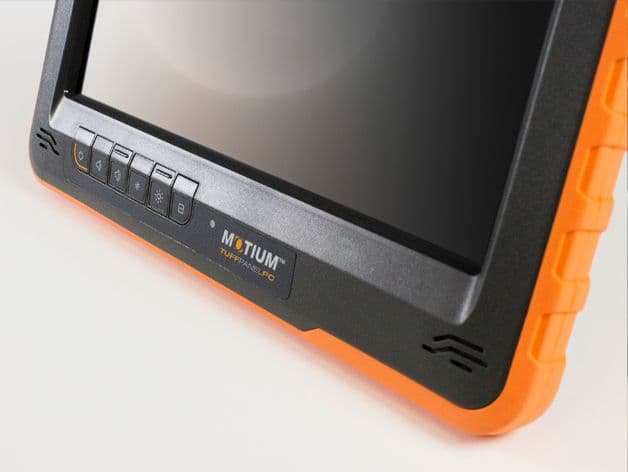

Showing the front right of the screen

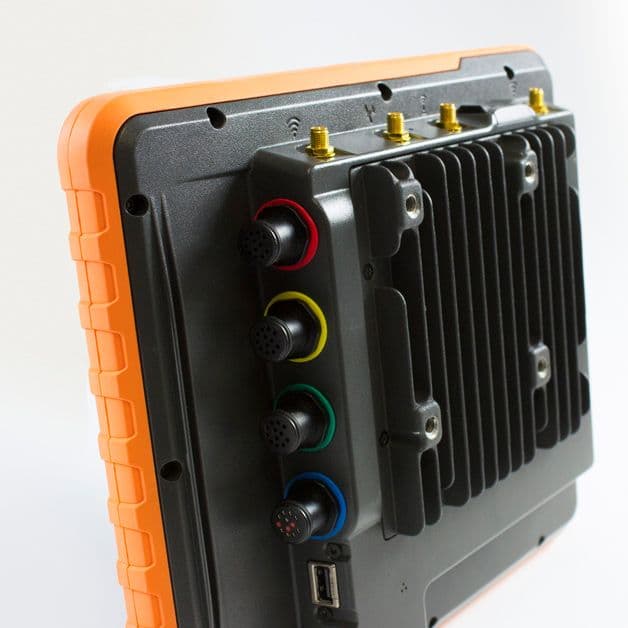

Back of the unit showing plugins and radiator fins

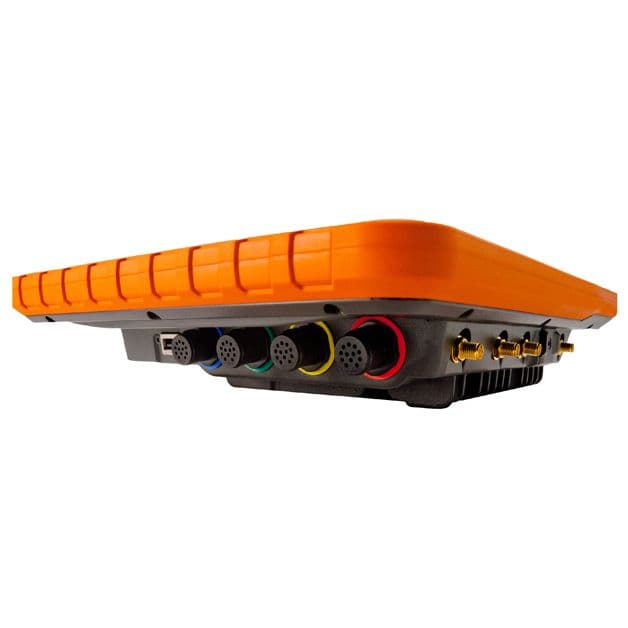

Underside of the unit, showing plugs

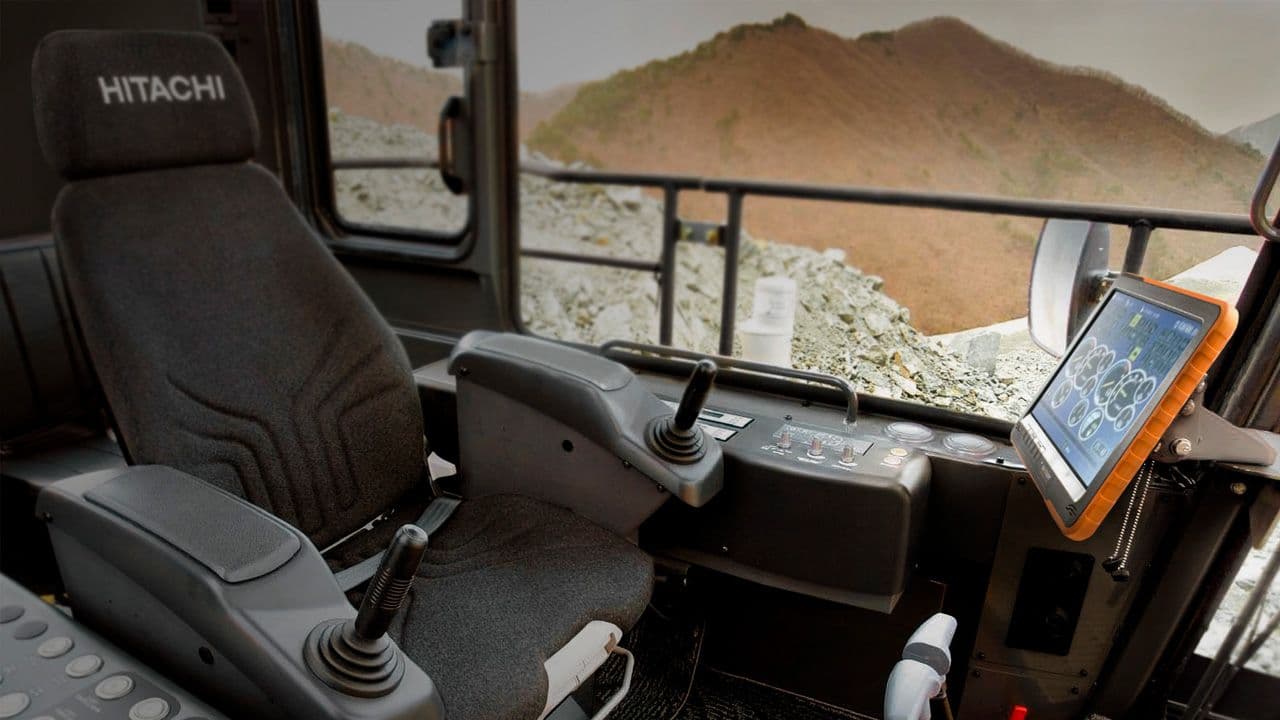

Unit in use inside an excavator
