AI occupancy sensor

In the modern, hybrid, post-COVID world, where a large percentage of office employees split their time between working in the office and working at home, understanding how spaces are used is more critical than ever. But traditional sensors often fall short, offering either “creepy” surveillance or inaccurate data.

When XY Sense needed to evolve their market-leading occupancy sensor, they turned to Outerspace to bridge the gap between high-compute AI and a discreet, manufacturable reality.

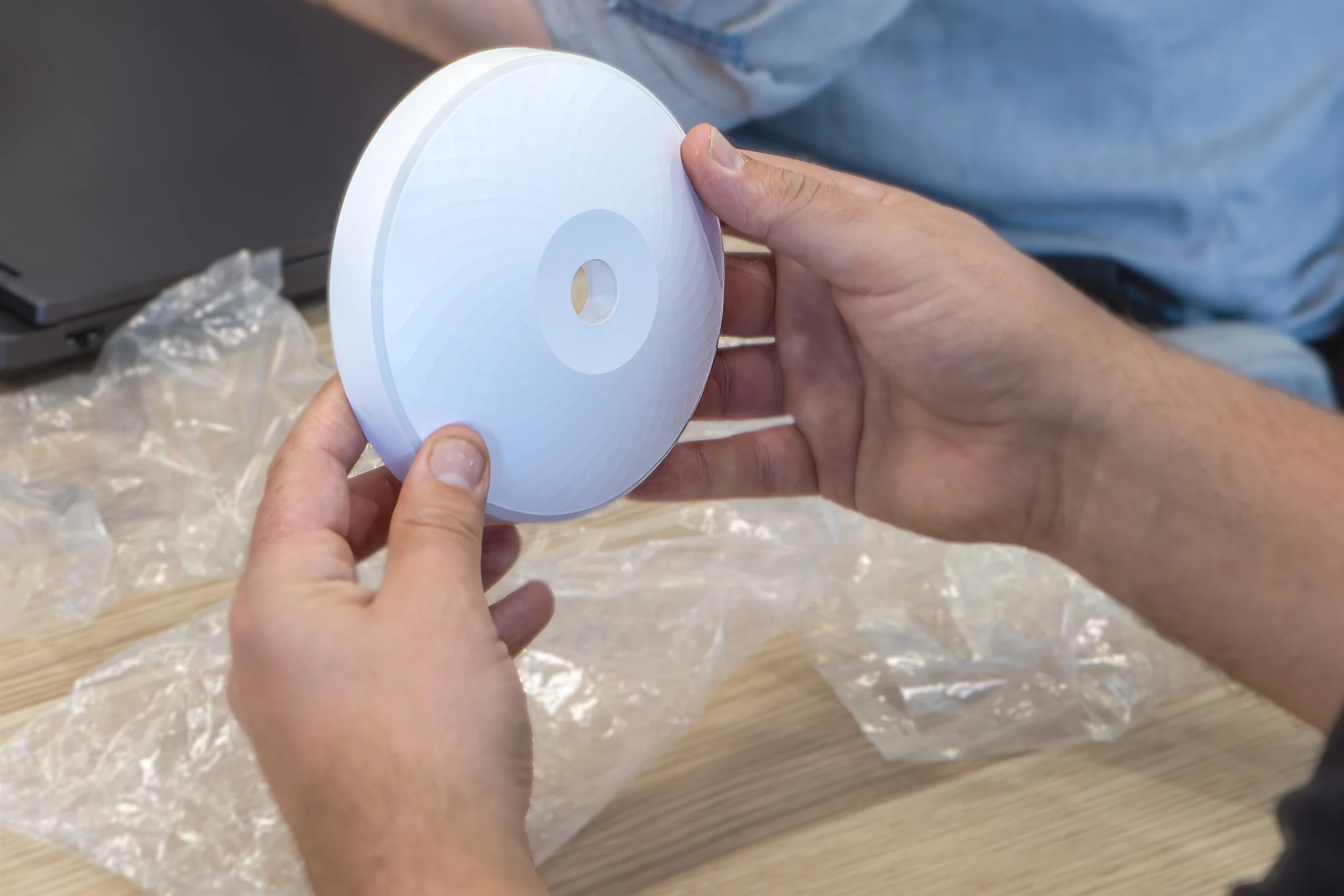

The brand new Area Pro sensor is the next-generation occupancy sensor for smarter, AI-driven offices. Designed to provide a better understanding of office spaces utilisation by employees.

Client

XY Sense

Industry

Safety and Industrial

Expertise

Electronic Engineering
Firmware Design
Industrial Design
Mechanical Engineering

The Challenge: High-Compute, Small-Footprint

The Area Pro represents a massive technological leap over its predecessor. To deliver real-time data at the “edge,” the device required a quad-core processor and a dedicated Neural Processing Unit (NPU).

The Core Challenge?

Packing that much processing power into a small, fanless housing without compromising the electronics or the aesthetic. Our team provided technical assistance across every facet of the hardware design to solve the “thermal burden” of modern AI.

Thermal Architecture & Mechanical Logic

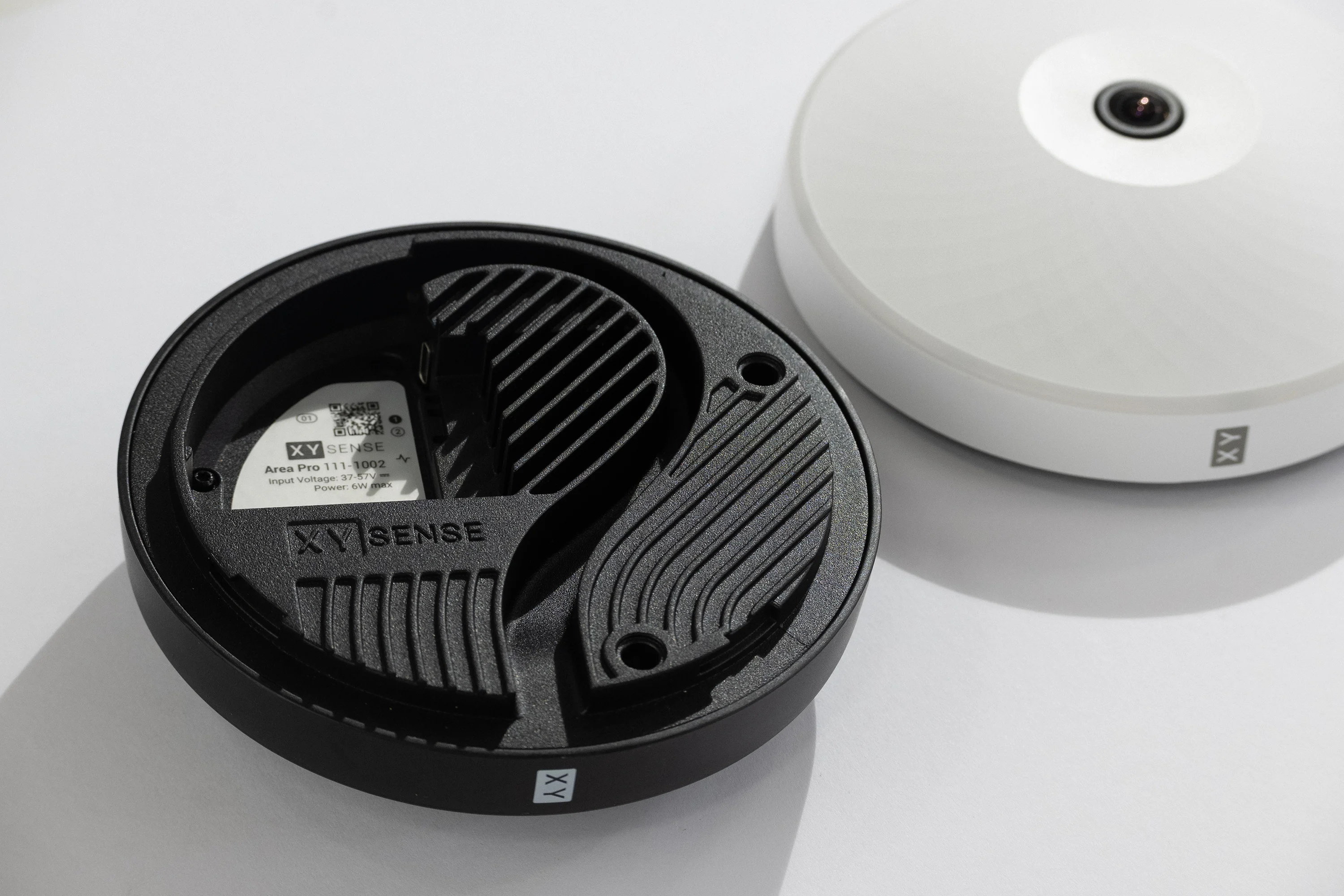

To manage the heat of the NPU, we replaced active cooling with a custom-stylised passive die-cast heat spreader. This component acts as both the structural spine of the device and its thermal engine. Through rigorous thermal partitioning, we isolated sensitive electronics from heat-generating components. These early calculations were validated with physical test rigs—using resistors to simulate real-world thermal loads—ensuring long-term reliability before a single production tool was cut.

Electronic & Software

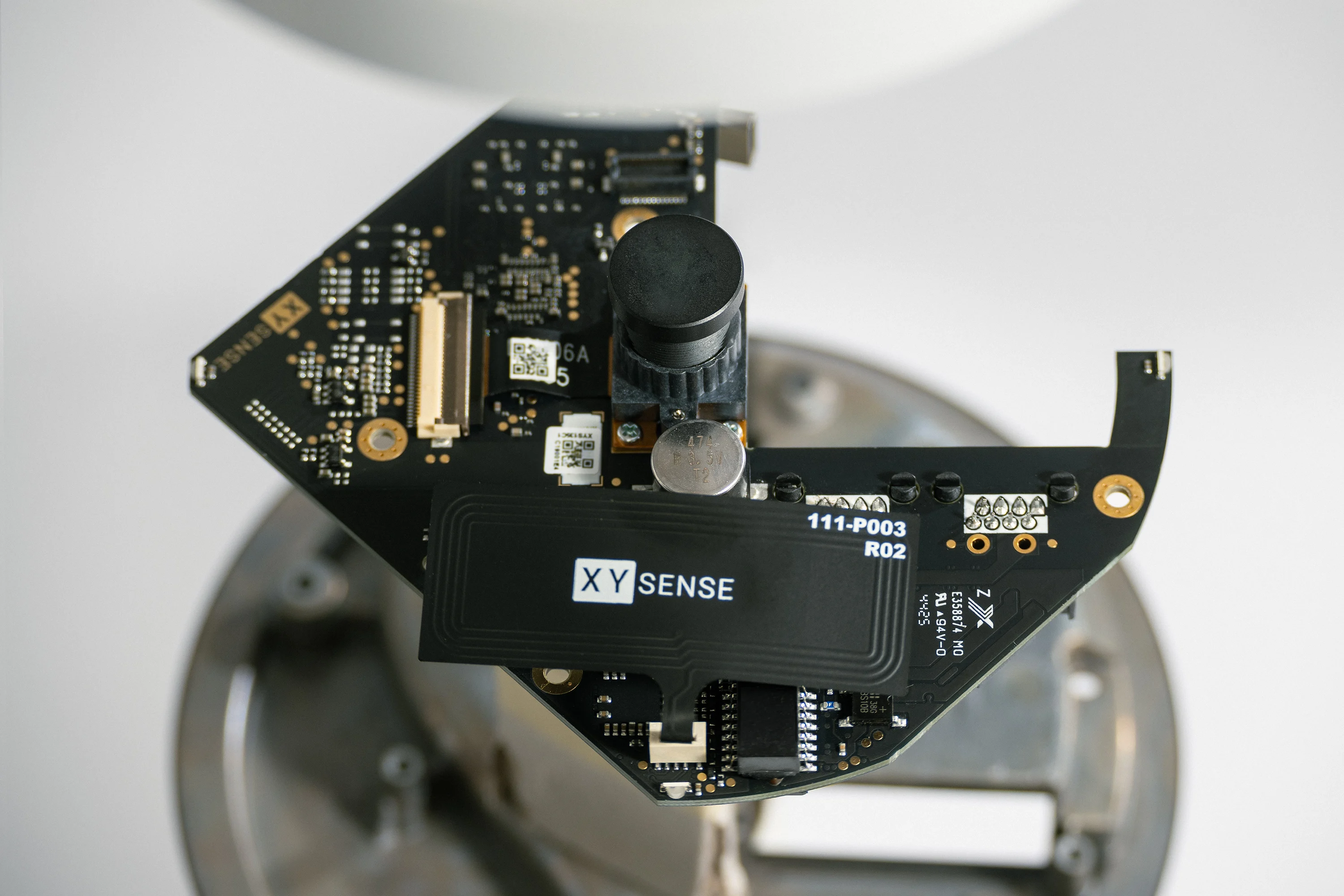

Using Altium Designer, we engineered a high-density, multi-layered rigid PCB. We transitioned from the multi-board architecture of Gen 1 to a single-board design, significantly simplifying assembly. Our embedded software team supported the bring-up with customisation, driver integration, and device tree updates, ensuring the hardware and software were functioning perfectly prior to the machine learning algorithms and client IoT rollout.

Design for Manufacture (DFM) & Sustainability

How we met ambitious targets by optimising the footprint:

Waste Reduction: By “clipping the corners” of the circular PCB, we maximized usable area and minimized eWaste during fabrication.
2K Injection Moulding: This achieved a premium, “hidden-until-lit” indicator effect, allowing the sensor to remain unobtrusive during use while providing clear feedback when needed.

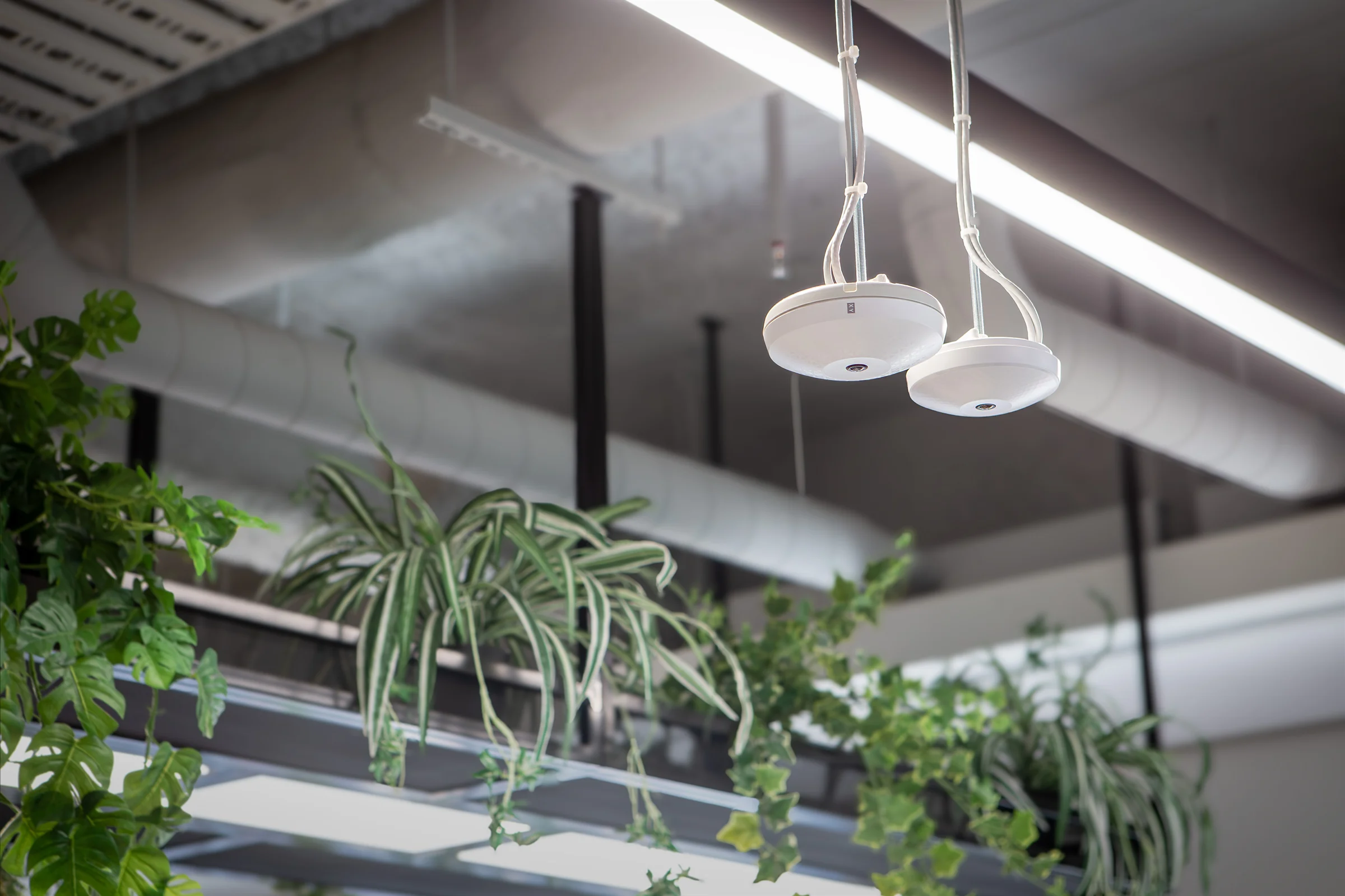

Senselink™ Daisy-Chaining: We engineered the physical interface for XY Sense’s proprietary daisy-chaining, allowing one gateway to power 30 sensors – slashing installation costs and material waste.

The Area Pro is more than a sensor; it’s a masterclass in functional minimalism. By combining housing and heatsink functions and refining the assembly process, Outerspace helped XY Sense launch a product that is smaller and faster—all while maintaining the “restrained but distinctive” look that high-end corporate environments demand.

Technical Insights:

Electronics Hardware

Altium Designer, Quad core, NPU, PoE, BGA, Multiple layer rigid PCB, Custom HDR Camera lens and FPC, Ethernet, USB

Mechanical Engineering

Solidworks, CNC Prototypes, Die-Cast, Injection moulding 2K (2 part), custom LED light pipe, water drain, and ingress protection

Verification and Validation

Passes EMC and Safety testing. Thermal calculations and real-world thermal testing, IP seal design and testing, benchmark testing

Manufacturing

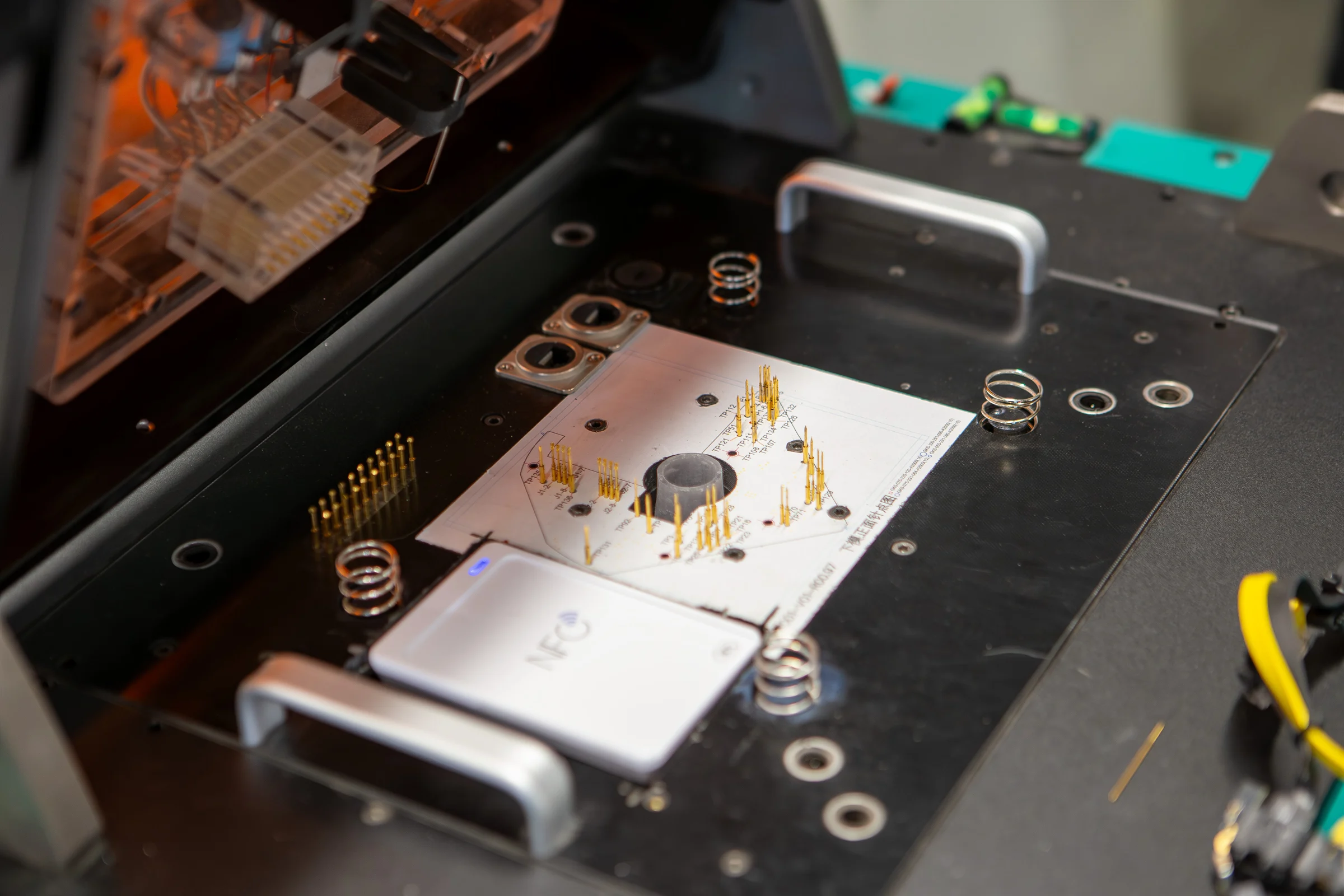

Multiple demonstration prototypes, multiple alpha prototypes, and new product introduction to the manufacturer. Design for test rig automation. Automated IoT provisioning and optical calibration

Embedded Software

Device tree updates, Driver integration. Hardware bring up and embedded software integration.

Industrial Design

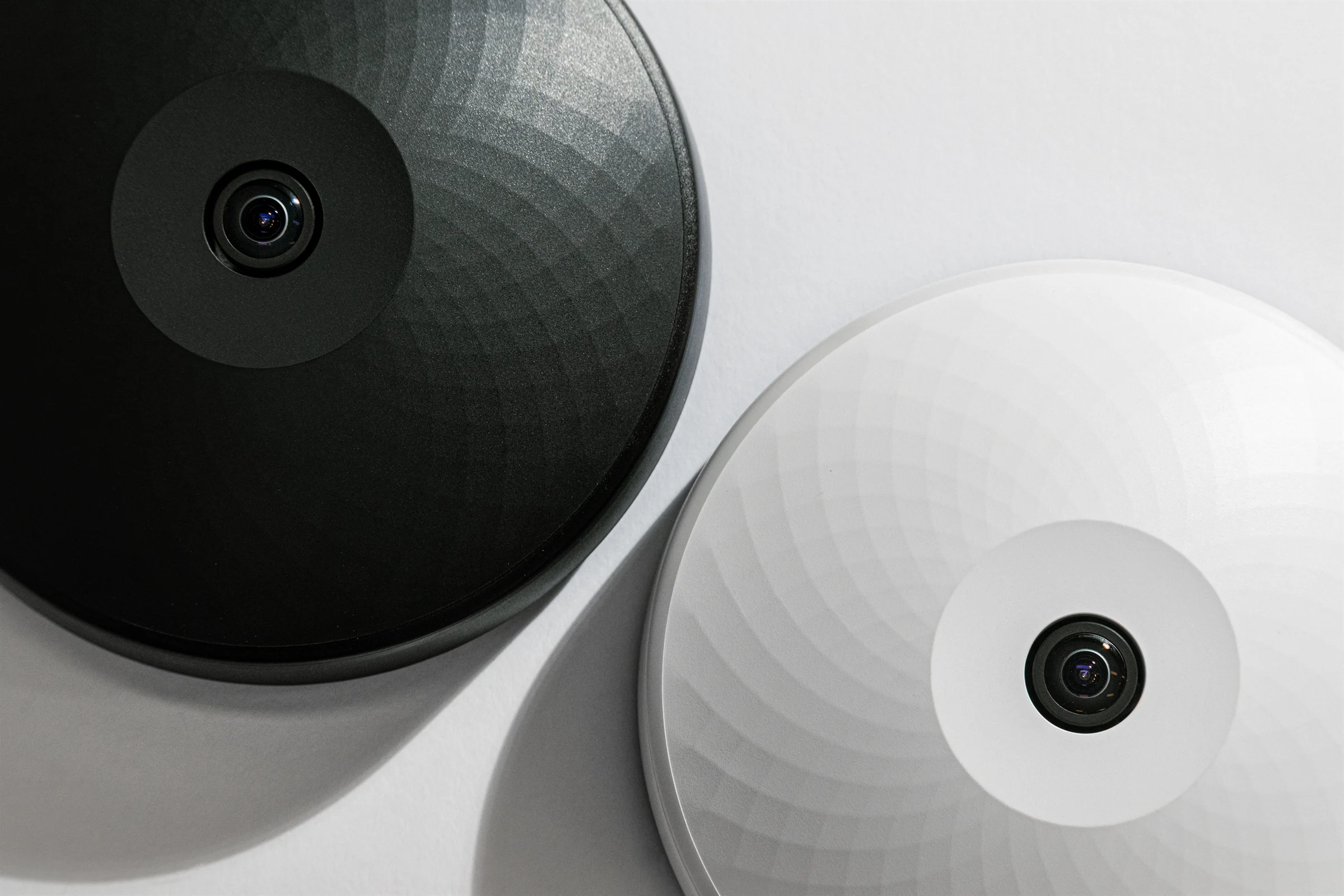

Styling and surface modelling, Rendering, colours, materials, and finishing

Project and program management

Coordination of multiple internal and external stakeholders; managing technical and program risks to successful delivery
